dsh-appearance-glass

English ｜ 简体中文 ｜ 繁體中文

Interface transparency for the DSH web UI, plus a built-in wallpaper. Plain alpha only — no blur, no saturation, no glass effects (modes and liquid glass were removed in 1.1).

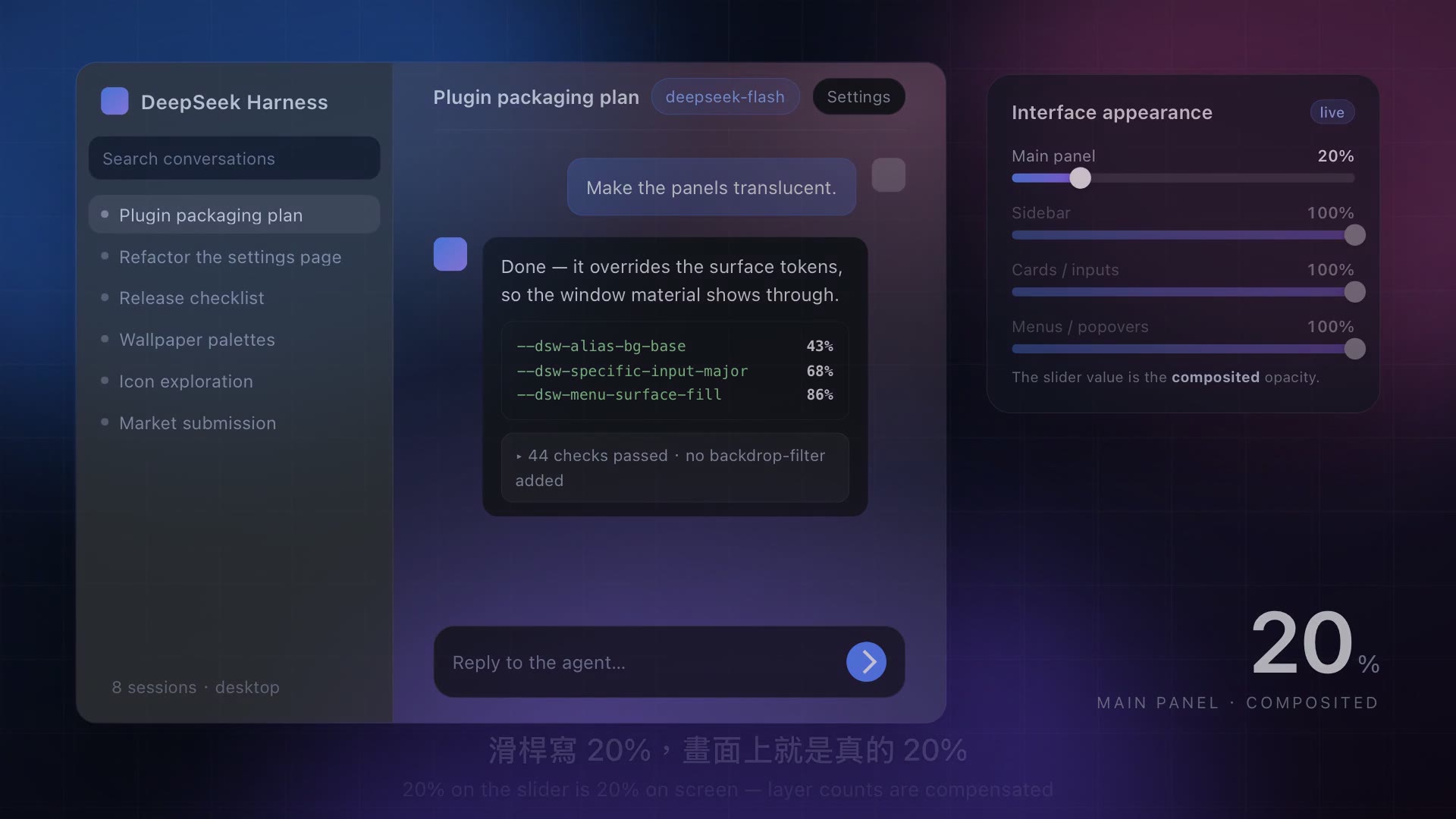

▶ Two-minute promo: English narration (中文旁白 ・ silent)

Where it lives	Settings → Interface appearance (its own settings.section page, right after General and before Models)
Same panel elsewhere	Settings → Plugins → dsh-appearance-glass (plugins.bundle.config)
Stored in	the profile's cordis.patch.yml (config:), applied instantly — no restart
Does not touch	any DSH source file; uninstalling removes every effect

What you get

• Four independent opacity sliders — main panel / sidebar / cards & inputs / menus & popovers. The value is the composited result: 20% really looks like 20% (see the math below).
• Built-in wallpaper — three colour blobs, a base colour, a strength, five palettes, and a live preview whose mock surfaces use the real tokens with the real layer count.
• A kill switch — turn “Enabled” off to compare instantly; nothing is uninstalled.

Install

dsh plugin --profile web add dsh-appearance-glass          # from npm
dsh plugin --profile web add github:david0304git/dsh-appearance-glass   # from GitHub

Requirements: dsh >= 0.2.0 (engines.dsh); tested on 0.2.1-rc.2. The only peer dependency is @deepseek-ai/schemastery (provided by the host, marked optional).

Finding it in a plugin market

• Official Discover: plugin_market reads the index URLs you add (DSH ships none). Two that work:
  • https://cdn.jsdelivr.net/npm/dsh-plugin-catalog/index.json — the awesome-dsh-plugin list as a format-1 index
  • https://awesome-dsh-plugin.com/index.json
• dsh-market (dshmarket): only installs from the awesome-dsh-plugin list, so this plugin has to be listed there first.

Settings page

1. Header — title, customised in this profile badge, write status, Enabled (official Switch), Reset to defaults
2. Interface opacity — four sliders (main panel / sidebar / cards & inputs / menus & popovers) plus a Sync button that copies the main-panel value to the other three
3. See-through backdrop — Auto / Built-in wallpaper / Pure transparent

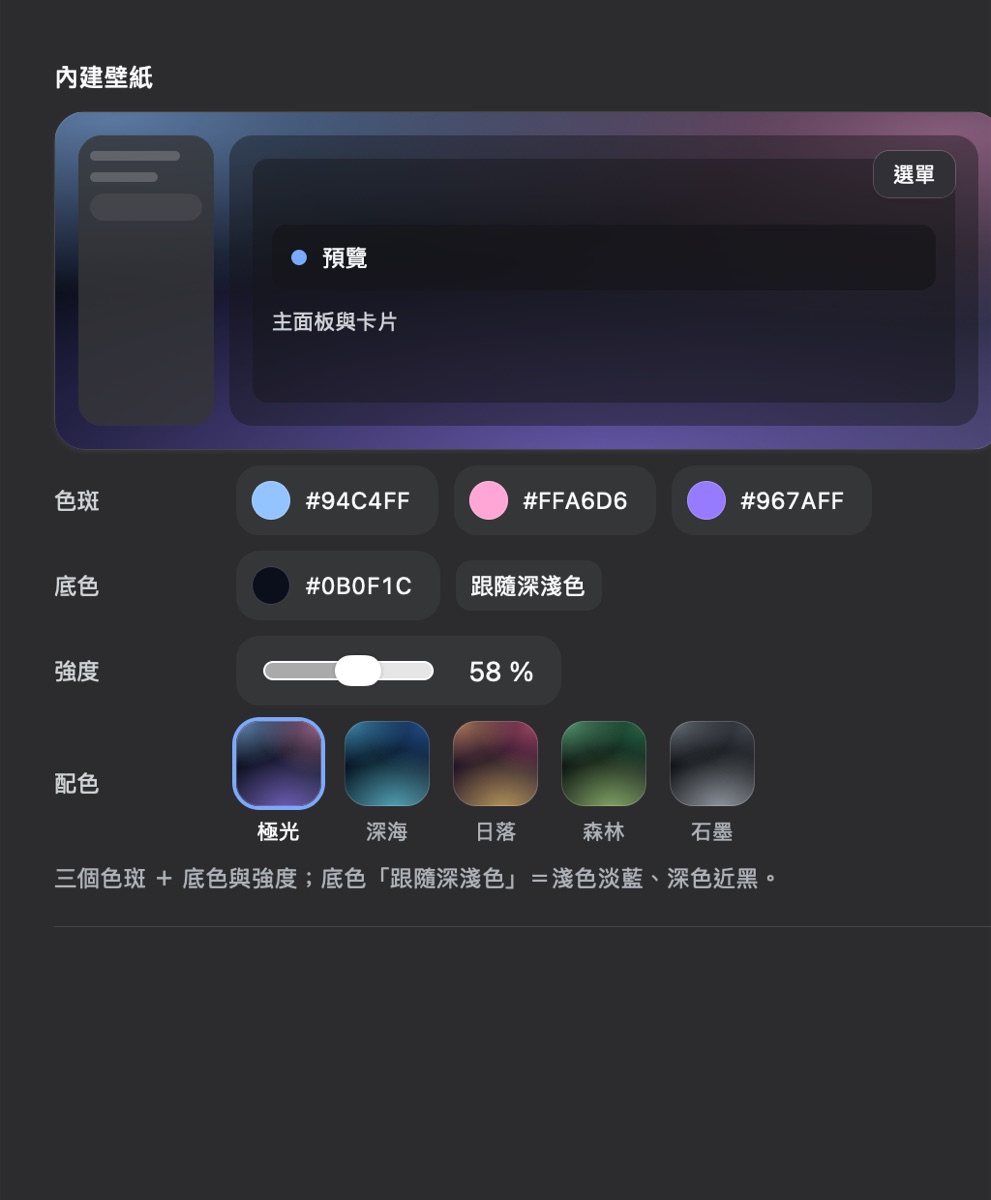

4. Built-in wallpaper — live preview, then four aligned rows: blobs (three colour pills), base (colour pill + follow light/dark), strength (slider pill), palette (five 44 px gradient cards; the one in effect gets a focus ring)

Parameters

Field	Range	Default	Meaning
enabled	boolean	true	Master switch; false leaves every token alone
opacityBase	0–100 %	68	Main panel (the conversation background is painted twice — see below)
opacitySidebar	0–100 %	68	Sidebar and its selection states (the shell adds a 40% tint on top)
opacitySurface	0–100 %	68	Cards, inputs, message bubbles, code blocks
opacityOverlay	0–100 %	72	Menus, tooltips, toasts, popovers
backdrop	auto / wallpaper / none	auto	auto uses the native window material on desktop and the wallpaper elsewhere
wallpaperA/B/C	#rrggbb or auto	auto	The three blobs; auto follows light/dark
wallpaperBase	#rrggbb or auto	auto	Base colour; auto = #e9f0ff light / #0b0f1c dark
wallpaperStrength	10–100	58	Blob strength (the 2nd and 3rd are automatically weaker)

Why the slider value is the composited opacity

The same token is often painted more than once: on macOS the shell's .centerCol and the conversation root both draw --dsw-alias-bg-base. Setting that token to 68% would show 1-(1-0.68)² = 89.8% — which is why “turn it all the way down” used to look barely transparent.

The plugin therefore solves for the per-layer value (a = 1-(1-target)^(1/depth)):

Region	Real layers	Slider 20% writes	Composited
Main panel	2	11%	20.0%
Sidebar	~1.4	13%	~20%
Cards / inputs	1	20%	20.0%
Menus / popovers	1	20%	20.0%

The per-token deltas shrink with the target too, so low values are not pulled back up.

Why macOS gets real see-through

The DSH desktop window is created with vibrancy: 'sidebar' and backgroundColor: '#00000000', and the shipped CSS makes html/body transparent on html[data-platform=darwin]. The desktop material is always there — it is simply covered by opaque panels. Swapping those surface tokens for translucent colours lets it through; this is not a CSS imitation.

The system material's own blur cannot be turned off: it is an Electron main-process window property, and no renderer IPC exposes it (DESKTOP_IPC only has nativeThemeSet for light/dark and windowsAppearance for Windows title bars). For a completely unblurred result, open DSH in a browser.

Implementation notes

• Everything is a theme token override (ctx.theme.overrideTokens); official components consume --dsw-*, so no hashed class name is involved.
• Only the wallpaper touches <html> (background-image). The plugin never adds backdrop-filter to a container — that would create a containing block for position: fixed descendants, and DSH menus render in place with CSS anchor positioning.
• The UI is built from official shapes (selector pill 36 px, --dsw-radius-md, --dsw-alias-bg-module-platform), the official Menu and Switch primitives, with native <select> / text-button fallbacks.
• Fail-open everywhere: without theme/slots/locale/configForms nothing is registered and nothing changes.

Tests

npm test        # node test/run.mjs — host 7 + client 33 + tokens 4

test/tokens.test.mjs reads the installed DSH app.asar, extracts the official token table and checks every token this plugin overrides — a DSH upgrade that renames a token fails the suite immediately. (Verified against DSH 0.2.1-rc.2, 403 official tokens.)

Troubleshooting

Symptom	Cause / fix
A control is greyed out	That field is not served by the host yet — usually a host-half change without a DSH restart. The header says so
Nothing changes	Check the “Enabled” switch, then whether the backdrop is none
No desktop visible (macOS)	Layer compensation is handled; make sure DSH is the desktop app, not a browser tab (browsers have no window material, only the wallpaper)
Old mode / blur / saturate keys in the config	Leftovers from 1.0; harmless, delete them if you like

Icon and sidebar glyph

icon.svg is declared through package.json's icon (the official contract: a relative path, SVG/PNG/JPEG/WebP, ≤256 KiB; the host inlines it as a data: URL and shows it at 48×48).

The settings sidebar glyph is hard-coded in the shell (navIcon(id): only account / models / agent-presets / plugins / archived-sessions have their own glyph, everything else falls back to the gear), and settings.section has no icon field. This plugin therefore uses a minimal DOM patch that replaces the glyph in its own row only: it locates the row by its label in all three languages, saves the original innerHTML, restores it on dispose, observes only body.childList (the settings panel is a portal subtree), and does nothing at all if the structure does not match.

Publishing

Step	Command
Check the tarball	npm pack --dry-run
Publish	npm login && npm publish --access public (runs the tests via prepublishOnly)
GitHub release	gh release create v1.1.x dist/dsh-appearance-glass.tgz
Market listing	PR adding data/plugins/david0304git__dsh-appearance-glass.yml to awesome-dsh-plugin

The submission file lives at submit/awesome-dsh-plugin.yml; the repository declares dsh.bundle, so dsh plugin add installs it. No prepare / postinstall script exists, so a source install needs no build approval.

License

MIT
