A2UI interactive cards for the dsh web UI: the agent adaptively renders interactive, visual UI cards right inside the conversation — quizzes, forms, dropdowns, product cards, ECharts charts, math function plots, Mermaid flowcharts/mind maps, KaTeX formulas, and step-by-step algorithm animations. User interactions flow back to the agent as plain-language messages, closing the loop.

The UI protocol is A2UI v0.9 (a declarative Agent-to-UI protocol); rendering is powered by Ant Design X's official implementation, @ant-design/x-card.

📸 Feature showcase with GIFs → DEMO.md · 🗺️ Scenario × component map

---

Design

Architecture: one package, two halves

a2ui-render-in-dsh (one npm package, a dsh bundle)
├─ Host half  lib/index.js         cordis plugin registering two agent tools
│    ├─ a2ui_render                renders a card (slim ~140-token description, always visible)
│    └─ a2ui_catalog               returns the full component catalog & authoring
│                                  rules (~975 tokens, loaded on demand, once)
└─ Client half  lib/client.js      browser bundle registering the a2ui_render toolview
     ├─ x-card engine (A2UI command stream, data binding, action resolution)
     ├─ component catalog implementations (18 components, themed via --dsw-* tokens)
     └─ ECharts 6 / Mermaid 11 / KaTeX (fonts inlined) all bundled — zero external requests

Key design decisions

1. Proactive rendering, decided by the model. The tool contract tells the model to reach for cards actively: asking the user anything always renders a form card (each question = one field; suggested options come with an "other" text field), math notation always uses the formula component, and comparable data gets a chart proactively; plain text is reserved for pure narrative explanation. Verified across five scenario classes (survey, choice, math, data, plain explanation) — triggering and restraint both behave.

2. Skill-style context design (catalog on demand). The full component catalog is NOT inlined in the tool description; it lives in a second tool, a2ui_catalog. Always-visible cost drops from ~1,200 to ~211 tokens (−82%). The model calls the catalog once before its first card in a conversation and reuses it for later cards; conversations that never draw a card pay nothing. The host validates component names and errors with a "call a2ui_catalog" hint, so the model can't silently guess wrong.

3. Non-blocking answers over the native message path. Submissions need no custom server channel: the client sends the submission through dsh's own session.prompt RPC as an ordinary user message. Messages are plain language (button label + chosen values, multi-line for forms) — readable for humans, parseable for the model, no raw JSON in the conversation:

Submit signup
City: Shanghai
Tracks: Backend, Data Analysis

4. Semantic submit locking. Cards with input components (forms/quizzes) lock after their first submission — inputs disable, the chosen values stay highlighted, and the submission is recorded (persisted to localStorage; a page reload restores the locked state, values, and timestamp). Buttons on cards WITHOUT inputs (product cards) are treated as query buttons and stay clickable. A per-button submit: true|false overrides the heuristic.

5. Let the model do only what it's good at. Function plotting: the model writes an expression (tan(x)); sampling and asymptote breaking are done by a built-in safe expression evaluator (whitelist shunting-yard parser, no eval, injection is rejected) — hand-enumerating data points would inevitably fail. Algorithm animations: the model simulates the algorithm into per-step frames (an LLM strength); playback, transitions, and controls belong to the component.

6. Fully self-contained display stack. ECharts, Mermaid, and KaTeX (woff2 fonts as data URIs) are all bundled (~5MB, served locally, loaded once) — no CDN, works offline; light/dark theme follows the page automatically.

Highlights

• 🎯 Adaptive: the model chooses text vs. card; verified reliable in both directions
• 🪶 Context-friendly: skill-style catalog design, ~211 tokens always-visible
• 💬 Elegant answers: plain-language submissions, not raw JSON strings
• 🔒 Submit-once locking: forms can't double-submit, records persist; query buttons unaffected
• 📊 Full visualization family: ECharts charts/dashboards, function plots, all Mermaid diagram types, KaTeX formulas (matrices are forced into formula rendering), video
• 🎬 Algorithm animations: array/bars and grid/matrix forms, auto-detected; auto-plays once per card (component remounts never replay), ↻ manual replay, stepping, progress bar, legend
• ⛶ Fullscreen zoom: mind maps/flowcharts/charts/images go fullscreen with fit-to-viewport, wheel zoom + drag pan
• 🧱 Multi-column layout: Grid for product comparisons and chart dashboards
• 🎛️ Complete input states: dropdown single/multi select, preselection (dataModel seeds), component- and option-level disabling
• 🌓 Light/dark themes across every component
• ✅ Verified: jsdom interaction tests plus real-chromium screenshot/recording verification of the full pipeline

Built with

Layer	Technology	Role
UI protocol	A2UI v0.9	Open protocol for agents to describe UIs as declarative JSON
Protocol runtime	@ant-design/x-card 2.9 (Ant Design X)	A2UI command-stream processing, data binding, action resolution
Charts	Apache ECharts 6.1	Data charts, dashboards, function plots, bar animations
Diagrams	Mermaid 11.17	Flowcharts, mind maps, sequence diagrams, gantt, and more
Formulas	KaTeX 0.18	LaTeX rendering (woff2 fonts inlined as data URIs)
View layer	React 18	Provided by dsh web's module table (externalized, not bundled)
Plugin framework	cordis + @deepseek-ai/dsh-tools	dsh's plugin system; agent tool registration (defineTool)
Build	esbuild	Dual-half bundling, KaTeX font inlining, module-loader wrapper

Component catalog

Component	Props	Notes
Column / Row	children, gap?	Vertical / horizontal layout
Grid	children, columns?, gap?, minWidth?	Multi-column: fixed column count (2–4 recommended) or auto-fit by minWidth
Card	children, title?	Bordered group
List	children, direction?	List container
Divider	—	Separator
Text	text, variant?: h1|h2|h3|body|caption|strong	Text
Image	url, alt?, width?, height?	Images (incl. GIF), built-in fullscreen zoom
Tag	text, color?: blue|green|red|orange|gray	Tag/badge
Math	tex, block?	KaTeX formulas (fonts inlined, zero external requests); matrices/vectors must use this
Mermaid	code, caption?	Mermaid 11: flowchart/mindmap/sequence/gantt etc., built-in fullscreen zoom
Chart	option, height?, functions?, xMin?, xMax?, samples?, yClip?	ECharts 6: data mode (option verbatim) + function-plot mode (expressions sampled automatically, asymptote breaks), built-in fullscreen
Video	url, poster?, loop?, muted?, autoplay?	HTML5 video (mp4/webm)
Anim	frames, interval?, height?, autoplay?, labels?	Algorithm animation: bars, grid/matrix, and graph/tree (BFS/DFS, auto circle layout) forms auto-detected; auto-plays once per card per tab, ↻ replay / pause / step / reset / progress / legend
Button	label, variant?, submit?, action: {event: {name, context?}}	Sends the submission; submit explicitly controls card locking
MultipleChoice	options, bind, maxAllowedSelections?, disabled?	Flat multi/single select (maxAllowedSelections: 1 = single), per-option disable
Select	options, bind, label?, placeholder?, multiple?, maxAllowedSelections?, disabled?	Dropdown: single stores a value, multi stores an array; option descriptions/disabling
CheckBox	label, bind, disabled?	Boolean toggle
Slider	bind, label?, min?, max?, step?, unit?	Numeric slider; pairs with Chart params for live parameter exploration
Rate	bind, label?, max?	Star rating
Calc	expr, inputs, out, digits?	Invisible derived value: live-recomputed expression written back to the data model (calculator engine)
When	value, equals?/includes?/notEmpty?, children	Conditional container: reveal follow-up fields on selection
Tabs	tabs, children, bind?	Tab switcher: dataset switching / content grouping
Table	columns, rows, caption?	Comparison/spec/price tables; dictionary binding switches datasets
Stat	label, value, unit?, trend?	KPI tile; combine in a Grid for metric overviews
Steps	items	Step list (done/current/pending)
Progress	value, max?, label?	Progress bar
Timeline	items	Timeline (history / event review)
CodeBlock	code, language?, title?	Code with line numbers, light highlighting, copy button
Icon	name, size?, color?	32 built-in stroke icons
Audio	url, title?	Audio player
Flashcard	front, back	Tap-to-flip card (vocabulary / recall)
Countdown	to?/seconds?, label?	Live countdown
TextField	label?, placeholder?, multiline?, bind, disabled?	Text input

Inline math: every text position (Text, option labels, table cells, steps, flashcards, animation captions) may embed KaTeX with $...$ — math-quiz OPTIONS can be formulas. Reactive bindings: inputs write the data model and every {"path"} binding updates live — slider→curve (Chart params), choice→follow-up (When), input→computed result (Calc→Stat), switcher→dataset (Tabs / Table dictionary binding).

Common to inputs: preselect by seeding dataModel at the bind path; disable via component-level disabled: true or per-option disabled. Data binding: bind is a write path WITHOUT a leading slash; display props read live values with {"path": "/x"} (WITH a slash).

Installation

Prerequisites

Requirement	Notes
dsh	@deepseek-ai/dsh ≥ 0.1.1-rc.1 with an initialized web profile (run dsh web once before installing)
Node.js	≥ 20 (with npm)

Option A · From npm (recommended)

dsh plugin --profile web add a2ui-render-in-dsh
dsh web

Zero runtime dependencies — two commands and you're done. If your npm mirror hasn't synced the latest version yet, point at the official registry explicitly:

dsh plugin --profile web add a2ui-render-in-dsh --registry https://registry.npmjs.org

Option B · From source (for developers / hacking on the plugin)

# 1. Clone and build
git clone https://github.com/baihui-ai/a2ui-render-in-dsh.git
cd a2ui-render-in-dsh
npm install
npm run build
#    Build emits lib/index.js (host plugin) + lib/client.js (browser bundle).
#    lib/ is not committed — you MUST build after cloning or dsh won't find the entry.

# 2. Install into dsh's web profile in link mode
dsh plugin --profile web add link:$(pwd)
#    After code changes: just npm run build + restart dsh web, no reinstall.

# 3. Start / restart dsh web
dsh web

Verify in three steps

# 1) the composed tree contains the plugin entry
dsh --profile web --dump-config | grep -B1 -A1 a2ui-render-in-dsh
#    expected:  - id: a2ui
#                 name: a2ui-render-in-dsh

# 2) the frontend bundle is served (substitute your port from the dsh web banner)
curl -s http://127.0.0.1:<port>/ | grep -o "a2ui-render-in-dsh/client.js[^\"]*"
#    expected:  a2ui-render-in-dsh/client.js?rev=<hash>

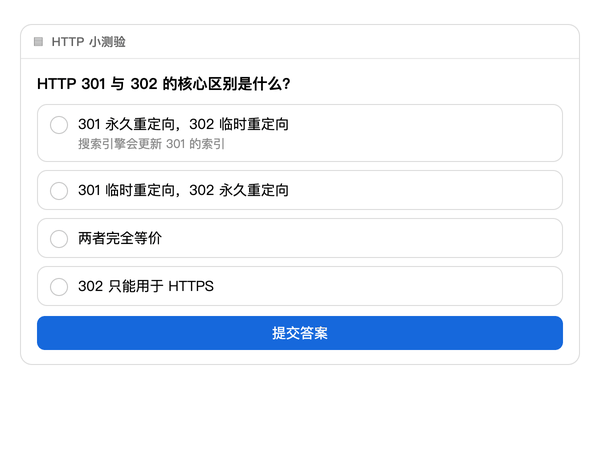

3. Open dsh web and say: "Quiz me with an interactive card" — a clickable multiple-choice card means it works (the model calls a2ui_catalog once before rendering; that's by design). More prompts: DEMO.md.

Upgrade & uninstall

# upgrade (npm install)
dsh plugin --profile web update a2ui-render-in-dsh

# upgrade (source link install): rebuild after pulling, then restart dsh web
git pull && npm run build

# uninstall: removes the dependency and the bundles entry, then restart dsh web
dsh plugin --profile web remove a2ui-render-in-dsh

Troubleshooting

Symptom	Cause	Fix
dsh web fails to boot / plugin missing	not built after cloning, lib/ absent	npm run build, restart
Code changed but UI unchanged	bundles are content-hashed at dsh boot	rebuild, then restart dsh web
Cards render as generic tool rows	client bundle not loaded	run verify step 2; check /plugins/a2ui-render-in-dsh/ requests in the browser console
Tool errors with unknown component	the model guessed without reading the catalog	self-correcting by design: the error tells the model to call a2ui_catalog and retry
Model answers in text, no card	the adaptive contract judged prose better	say "with an interactive card" in the prompt to trigger reliably

Notes

• The client bundle is ~5MB (ECharts + Mermaid + KaTeX built in, zero external requests), served locally and cached by the browser after first load
• Submission records live in browser localStorage, the animation played-once latch in sessionStorage — both local-only; the submission message itself is in the conversation, so the model side is unaffected across devices

How it works

1. The model decides a card helps → calls a2ui_catalog once (first card in the conversation) → calls a2ui_render with an A2UI v0.9 component adjacency list
2. The client toolview renders the arguments into a live interactive card via the x-card engine
3. The user clicks a Button → the plugin composes a plain-language summary → sends it through session.prompt as a user message → the model continues (grading / next step)
4. Form cards lock and record after submission; query buttons stay clickable

Development

npm run watch        # incremental dual-half builds (restart dsh web to apply)

File	Responsibility
src/host/index.js	Both tool definitions: a2ui_render (schema + component-name validation), a2ui_catalog (the full authoring guide)
src/client/index.jsx	Client plugin entry (locale + toolview registration)
src/client/toolview.jsx	Card rendering, submission composing, locking & localStorage records
src/client/components.jsx	Interactive catalog (layout/text/button/choice/dropdown/input)
src/client/components-viz.jsx	Chart / Mermaid / Math / Video / Anim
src/client/zoomable.jsx	Fullscreen zoom shell (Fullscreen API + zoom/pan)
src/client/expr.js	Safe expression evaluator for function plots (whitelist, no eval)
scripts/build.mjs	esbuild dual-half build (KaTeX font data-URI inlining, window.__ModuleLoader__ wrapper)

The client bundle externalizes only react / react/jsx-runtime (provided by dsh's module table); everything else is inlined.

Known limits

• Streaming card render: a placeholder row shows until the args JSON parses completely (no partial rendering)
• No dedicated animation form for graph/tree algorithms yet (BFS, tree rotations); the array and matrix forms cover sorting, searching, DP, etc.
• Side-by-side cards across separate tool calls are not possible (one call per row in the dsh conversation); Grid covers multi-column within one call

License

MIT
